Electrical Resistance and Ohm’s Law
This is a lesson summary. The full lesson can be viewed by purchasing an online course subscription.
Learning Objective
In this lesson we will learn about electrical resistance and how it can be calculated.
Learning Outcomes
By the end of this lesson you will be able to:
- Define electrical resistance and give examples of materials with high and low resistance.
- Describe how different factors can affect the resistance of an electrical wire.
- Describe fixed and variable resistors.
- Calculate total resistance in series and parallel circuits.
- Use Ohm’s law to calculate resistance, voltage and current.

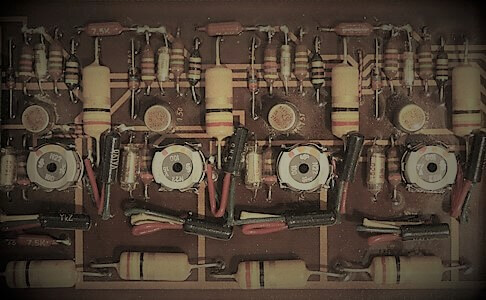

(Image: bluebudgie, Pixabay)
Lesson Summary
- Resistance is a measure of the restriction of current flow.
- It is measured in ohms (Ω).
- Conductors have low resistance and readily conduct electricity.
- Semiconductors have some resistance but still conduct electricity.
- Insulators have very high resistance and do not conduct electricity.
- The resistance of an electrical wire depends on:
- The type of metal
- The purity of the metal
- The length of the wire
- The thickness of the wire
- Resistors are electrical components designed to reduce current.
- Fixed resistors have a set level of resistance.
- Variable resistors have an adjustable level of resistance.

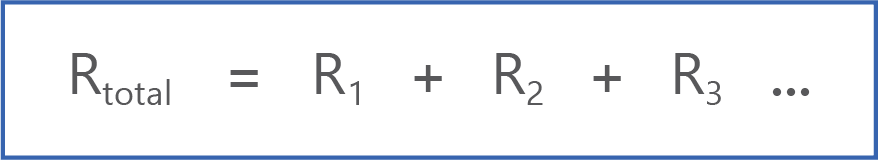

- The total resistance in a series circuit is calculated using the formula:

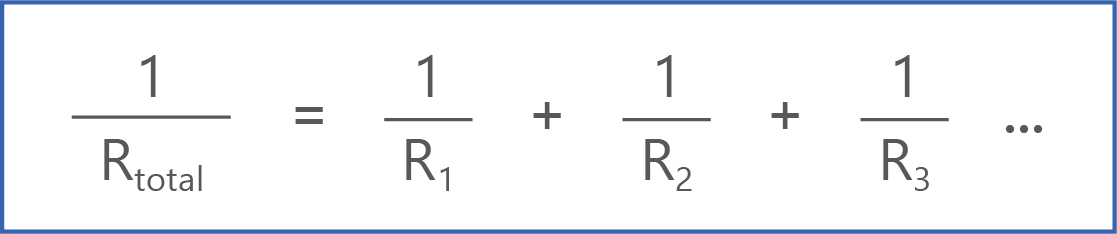

- The total resistance in a parallel circuit is calculated using the formula:

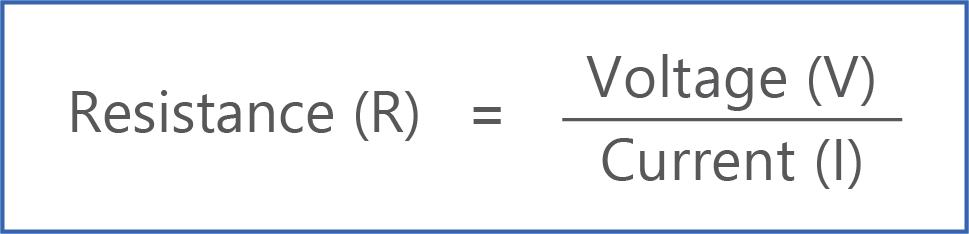

- Ohm’s law states that the mathematical relationship between resistance, voltage and current is given by the formula:

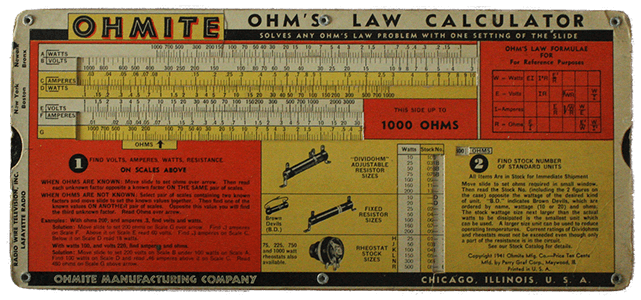

(Image: olafpictures, Pixabay)

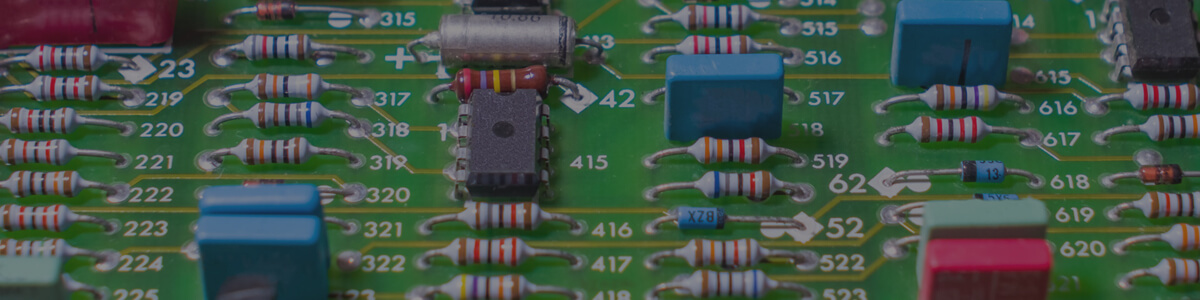

(Header image: Igor Batenev, Adobe Stock)
